The Munsell Color System for Painters

The Munsell color system is a way to name any color with three numbers: its hue, its value, and its chroma. Hue is the family the color belongs to, like red or blue-green. Value is how light or dark it is, on a scale from black to white. Chroma is how far it sits from a gray of the same lightness, which is another way of saying how intense it is. Albert Munsell, a painter and teacher, built the system around 1900 because the color names of his day, peacock blue, olive, plum, told you nothing you could mix twice. Painters use it because those three numbers are the three things you actually decide at the palette, and giving each one a number turns a color from a lucky accident into a decision you can repeat.

The shape of the system matters as much as the numbers. It is not a wheel, and it is not a ball. It is a lopsided solid, closer to a tree, and that lopsidedness is the most useful thing in it. The chart at the top of this page is that tree drawn from the side. Here is how the three axes work, how the notation reads, and why the crooked shape explains the single most common mixing problem, colors that go gray on you.

The three axes of color

Munsell was the first to pull color apart into three properties that move on their own. Change one without touching the others and you can see exactly what each does.

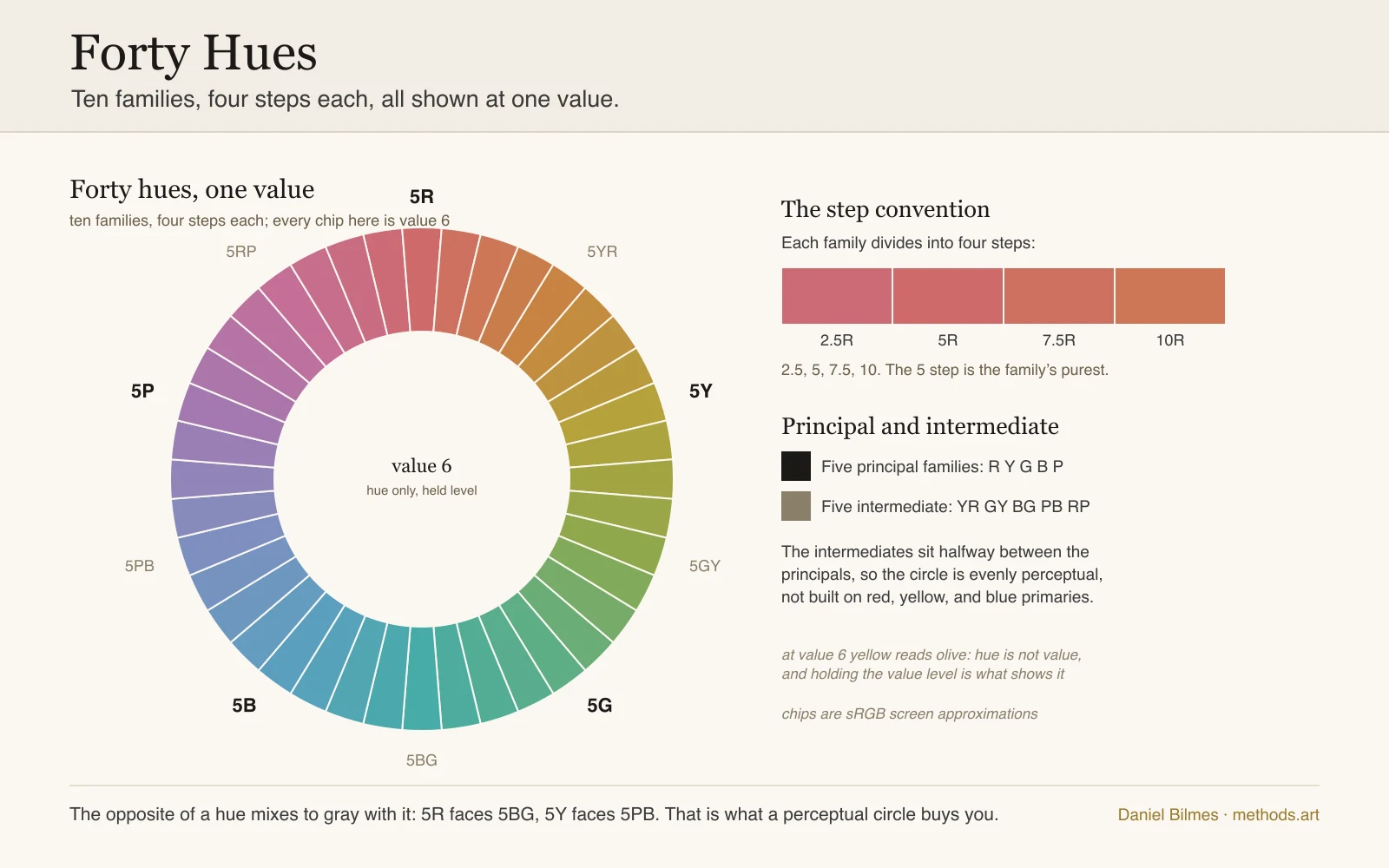

Hue is the color's family name. Munsell built the circle on five principal families, Red, Yellow, Green, Blue, and Purple, with five intermediate families sitting between them, Yellow-Red, Green-Yellow, Blue-Green, Purple-Blue, and Red-Purple. That makes ten families, chosen so the system counts in tens. Each family divides into steps numbered 2.5, 5, 7.5, and 10, and the 5 step is the purest example of the family, so 5R is the most representative red. A modern Munsell book carries forty hues in all, four steps for each of the ten families.

Notice what the chart holds constant. Every chip on that ring is the same value, so the only thing changing around the circle is hue. Held at value 6, yellow reads as olive, which throws people the first time they see it. That surprise is the lesson. Hue is not value, and once you stop confusing the two you can treat a color's family and its lightness as separate decisions.

Value is the vertical axis, and for most painters it is the first decision. It runs from absolute black at 0 to absolute white at 10, with a neutral gray scale up the center. A middle gray is written N5. Frank Reilly, who taught the system to a generation of painters at the Art Students League, cut Munsell's eleven steps down to a nine-step scale, 1 to 9, because a nine-step scale has an obvious middle and a painter mixing on a glass palette needs to find that middle fast.

Chroma is the distance out from that gray center, measured in even steps, /2, /4, /6, and on outward. Zero chroma is neutral gray. There is no fixed ceiling, because chroma stops wherever your strongest pigment stops, and for real paint that is rarely past 16. A cadmium red reaches much further out than any green you can buy, and that difference is built into the system rather than smoothed over.

How to read a notation like 5R 4/10

Put the three numbers in order and you have the notation. It always runs hue, then value, then chroma, written H V/C. So 5R 4/10 is hue 5R, value 4, chroma 10. Said out loud, five red, value four, chroma ten. That names a specific dark, strong red precisely enough that another painter, or you six months later, can mix it again. A duller version at the same lightness is 5R 4/2. A true neutral drops the hue and chroma and becomes N4. The point of the notation is that it holds still. A number does not drift the way a name like brick red drifts from one person to the next.

One hue, one page

The physical Munsell book gives each hue its own page, and a single page tells you most of what the system is for.

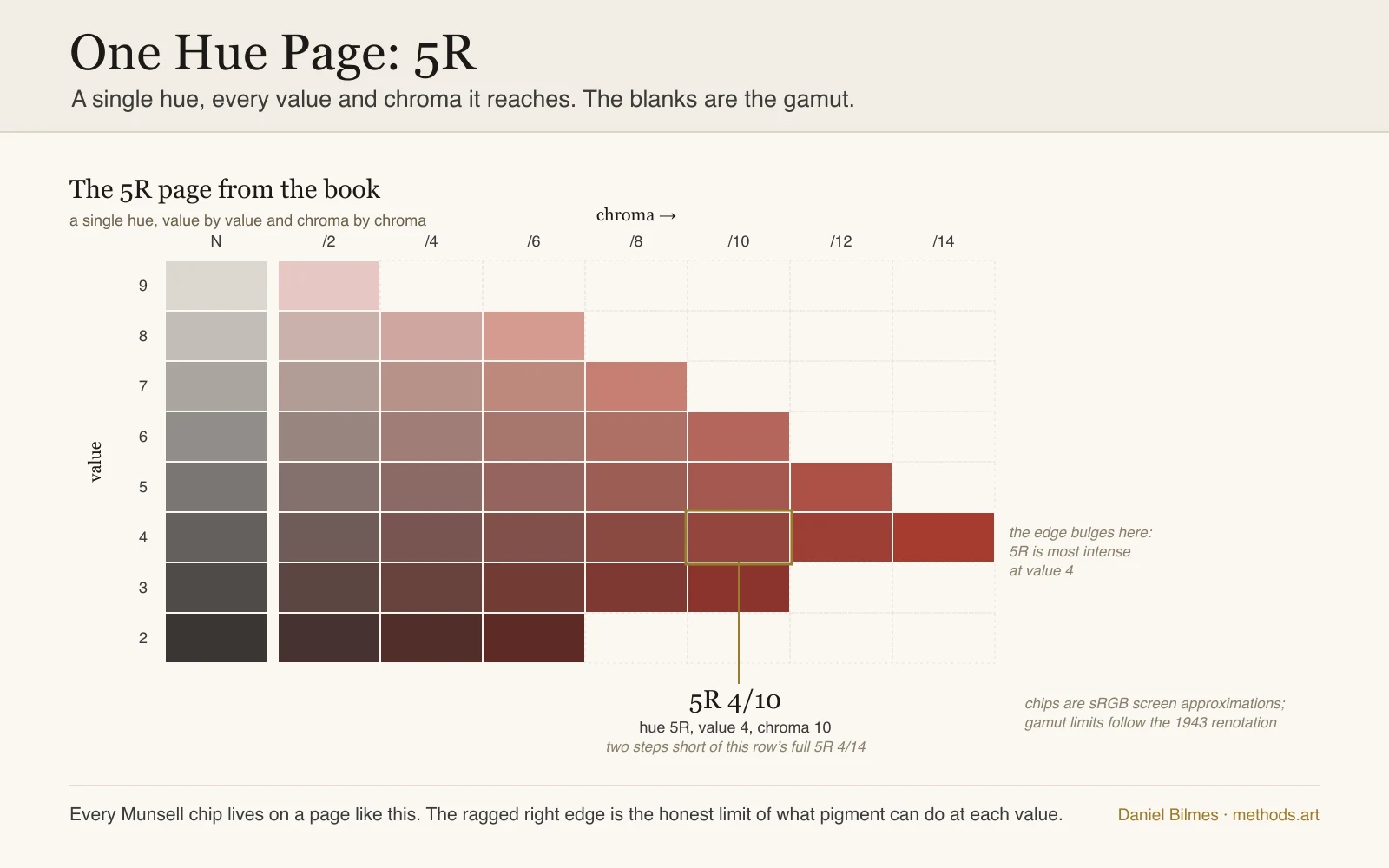

Read it as a grid. Value runs down the side, chroma runs across, and the neutral gray for each value sits in the N column on the left. Now look at the right edge, because that is the part that matters. It is ragged, not straight. At value 9, a light 5R barely reaches chroma 2 before it runs out of gamut. Down at value 4, the same hue pushes all the way to chroma 14. The blank cells are not chips someone forgot to print. They are colors no pigment can make, because there is no such thing as a light, intensely saturated red. Red's strength lives in the dark half of the scale. Every hue has a page like this, and every page has its own ragged edge in its own place.

The lopsided solid, and why your mixes go gray

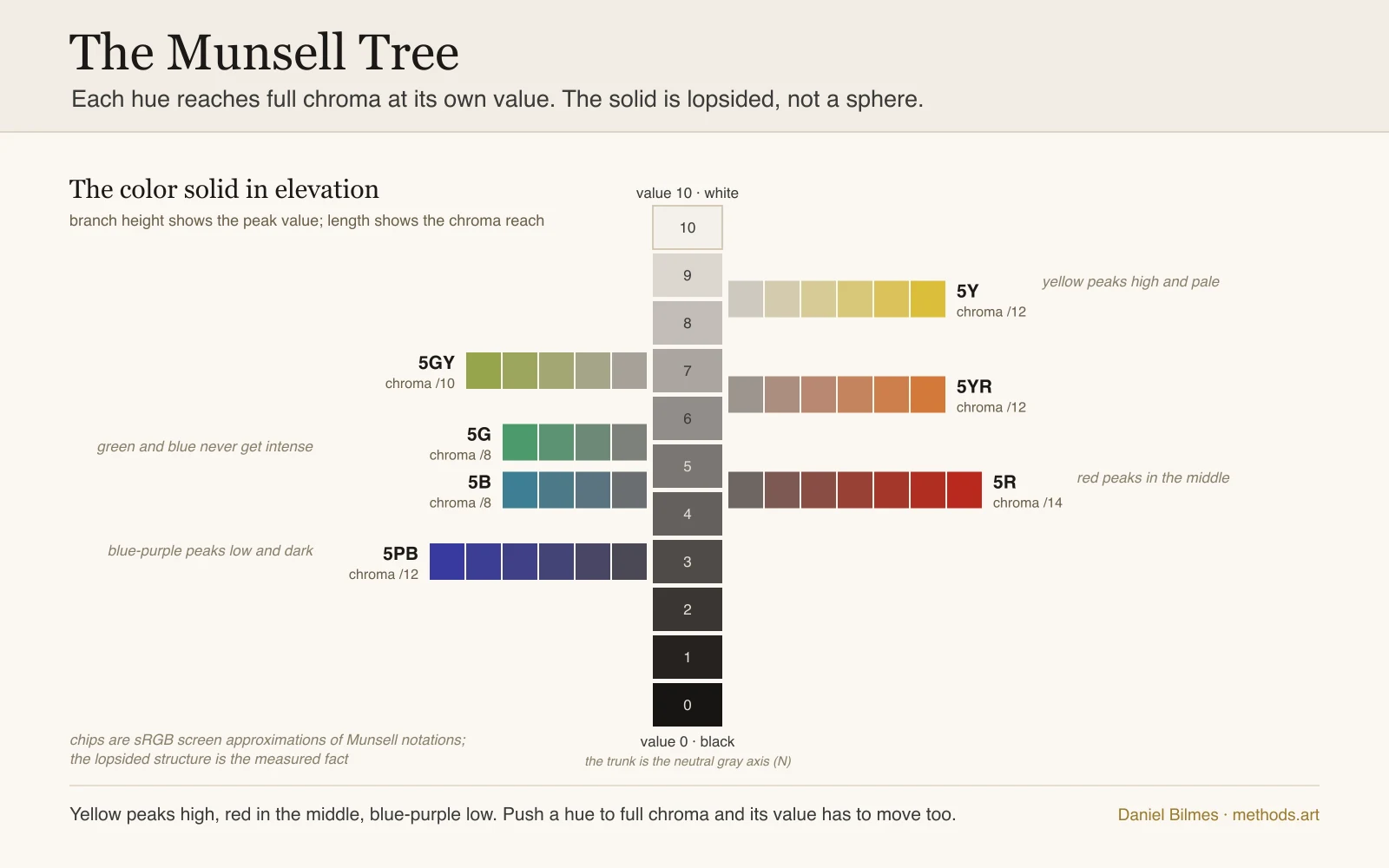

Stack all forty pages around the central gray trunk and you get the color solid. Munsell first expected a sphere, a tidy ball with gray at the center and every hue reaching the same distance out. Then he measured real pigments and found that each hue hit its strongest chroma at a different value. Yellow peaked up near white. Blue-purple peaked down in the dark. Red sat in the middle. A sphere could not hold that, so he gave it up. He called the old idea the color sphere and the true shape the color tree, built on a trunk of gray, and the elevation at the top of this page is that tree.

This is where the structure earns its keep, because the lopsidedness explains the most common complaint at the palette: I mixed two colors I liked and got mud. Here is the mechanism. Every hue holds its chroma only near its own peak value. Yellow is strong at value 8 and falls apart if you darken it. Ultramarine is strong at value 3 and chalks out if you lighten it. So when you mix a light yellow into a dark blue, the mixture lands in the middle values where neither pigment can carry much chroma, and the color that survives is closer to gray than to either parent. You did not do anything wrong. You asked two colors to be strong at a value where neither one can be. Knowing the shape tells you in advance when a mix will stay clean and when it is going to gray out before you touch the brush.

How painters actually use it

The system became a working method mostly through Frank Reilly. At the Art Students League he taught color as value control first, and the Reilly palette is the result. Before painting anything, you premix a string of nine grays from dark to light, then premix strings of your key hues matched to those same nine values. A painter working on flesh would lay out a red string and a yellow-red string, each stepped to the gray scale, and then mix the actual skin colors by crossing between the strings at a fixed value. Because the value is already settled in the string, you are free to adjust only hue and chroma while you paint, which is far easier than chasing all three at once on a wet canvas.

That way of working did not end with Reilly. A living line of painters, Graydon Parrish among the most visible, teaches Munsell-based color in long workshops, matching observed colors to physical Munsell chips and premixing value strings before the real painting starts. The tools have barely changed: a glass palette, a card of Munsell chips, and a scale of premixed grays to judge everything against. The discipline is the same one Reilly taught, which is to settle value before you argue about color. It is slow to set up and it is not for every temperament, but for a painter who works in planned layers it removes most of the guesswork from color.

Mixing toward gray, in practice

The most practical thing Munsell hands you is a clean way to dull a color without turning it to mud.

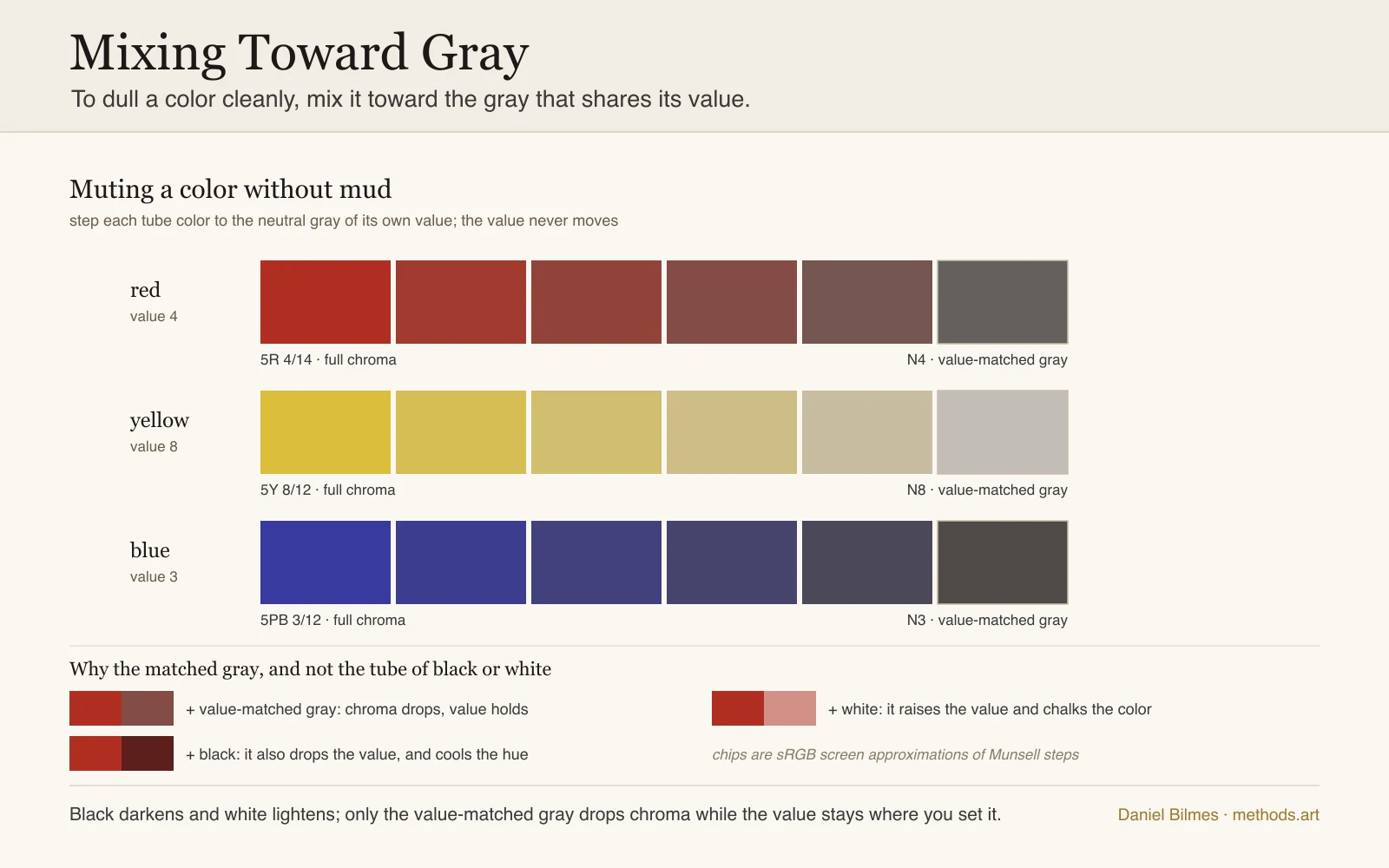

The move is simple once you see the tree behind it. To mute a color, mix it toward the neutral gray of its own value, not toward black and not toward white. Follow the three rows. A full-strength red at value 4 steps down to N4, a middle gray. A yellow at value 8 steps down to N8, a light gray. A blue at value 3 steps down to N3, a dark gray. Each color grays out along its own row while its value stays put, which is why the three end grays are three different lightnesses. Each hue lives at its own value, so its matched gray does too.

Reach for black instead and you get a worse result. Black does more than pull the chroma down. It drags the value down with it, and it cools most colors on the way, so a red muted with black comes back darker and duller and a little off in hue. White chalks the color and lifts the value. Only the value-matched gray does the one job you asked for, which is to drop the chroma and leave the value where you set it. This is why Reilly's students mixed those gray strings first. The gray of the right value was always sitting on the palette, ready to knock a color back without disturbing the value structure of the whole painting.

Munsell versus the color wheel

The color wheel most people learn is the red-yellow-blue wheel, and it is a different kind of object. It is flat and it shows one thing, hue. It carries no value and no chroma, and its complements do not behave, because mixing its red and green rarely gives a clean gray. Munsell rejected the red-yellow-blue primaries as a starting point. When he spaced colors by eye, the five families that came out evenly balanced were Red, Yellow, Green, Blue, and Purple, not the painter's old three.

The difference shows up the moment you try to neutralize. Munsell's opposites actually cancel: 5R sits across from 5BG, and mixed at the same value they gray each other out, which is exactly what you want when you knock down a color with its complement. A perceptual circle buys you neutrals you can predict. It is also part of why a limited palette works so well. Pick a few pigments that cover the value and hue range you need, like the four in the Zorn palette, and you can mix controlled, slightly grayed color all day without fighting a wheel that was never built to model chroma in the first place.

The ten hue families and where they peak

The lopsided tree is easier to trust as a table. Each family reaches its strongest chroma near a particular value, and that value is not the same from one family to the next. The three that Munsell's own measurements made famous are the anchors: yellow is strong up at value 8, red at value 4, and purple-blue down at value 3. The others fall in line between them. The exact ceiling depends on which pigment you own, so read the value as the reliable part and the reach as a rough guide.

Sources

The system rests on Munsell's own texts and the research that refined them.

• Albert H. Munsell, A Color Notation (1905). The founding book, where he argues that vague color names block the teaching of color and proposes hue, value, and chroma as a measured alternative.
• Albert H. Munsell, Atlas of the Munsell Color System (1915). The first set of physical color standards, and where the measured pigments forced him to trade the color sphere for the color tree.
• S. M. Newhall, Dorothy Nickerson, and Deane B. Judd, "Final Report of the O.S.A. Subcommittee on the Spacing of the Munsell Colors," Journal of the Optical Society of America, vol. 33, no. 7 (1943). The renotation that re-spaced the system for even perception and tied it to measured color science. The Munsell values in use today come from this study.
• Jack Faragasso, The Student's Guide to Painting (1979). A direct record of the Reilly method, including the nine-value gray scale and the controlled palette, written by the painter who took over Reilly's school.

Those give the notation, the value scale, and the palette practice. The color in the charts on this page is an sRGB stand-in for Munsell chips. A screen cannot show the real gamut, so treat the structure as exact and the color as indicative.

FAQ

What is the Munsell color system? It is a system for naming any color by three measured numbers: hue (its family, like red or blue-green), value (how light or dark it is, from 0 black to 10 white), and chroma (how far it sits from a gray of the same value). Albert Munsell, an American painter and teacher, published it in 1905 to replace vague color names with a scale you can measure and repeat. Painters use it because those three numbers are the three things you control when you mix, so a color becomes a decision you can record and match again.

What do the numbers in 5R 4/10 mean? They read in the order hue, value, chroma, written H V/C. 5R is the hue, the pure middle red of the R family. 4 is the value, a fairly dark tone on the 0 to 10 black-to-white scale. 10 is the chroma, how many steps out from neutral gray the color sits. So 5R 4/10 is a dark, strong red. A duller red at the same lightness would be 5R 4/2, and a plain gray at that value is N4.

Is Munsell better than the color wheel for painters? For mixing, yes, because it measures the two things a red-yellow-blue wheel leaves out, value and chroma, and its opposites actually neutralize. On the standard wheel, mixing complements rarely gives a clean gray. In Munsell, 5R sits across from 5BG and the two gray each other out at the same value, so you can predict a neutral instead of hoping for one. The color wheel is still a fine quick map of hue relationships. Munsell is the better tool when you need to control lightness and intensity, not just family.

How did Frank Reilly use Munsell? Reilly taught color as value control at the Art Students League. His students premixed a string of nine neutral grays from dark to light, then premixed strings of their key hues matched to those same nine values, all judged on a glass palette over gray paper. With value already settled in the strings, a painter adjusts only hue and chroma at the canvas instead of chasing all three at once. Jack Faragasso recorded the method in The Student's Guide to Painting, and painters like Graydon Parrish carry the same approach into workshops today.

Why is the Munsell color solid lopsided instead of a sphere? Because real pigments reach their strongest chroma at different values. Munsell expected a symmetrical sphere, then measured colors and found yellow peaks light, near value 8, while blue-purple peaks dark, near value 3, and red peaks in the middle. No sphere can hold branches of such different lengths at such different heights, so he replaced it with what he called the color tree, built on a central trunk of gray. The lopsided shape is a measured fact about pigment, not a stylistic choice.

How do you mute a color in Munsell without making mud? Mix it toward the neutral gray of its own value, not toward black and not toward white. Black lowers the chroma but also drags the value down and cools the hue, and white chalks the color and lifts the value. The value-matched gray drops the chroma and leaves the value where you set it. A value-4 red goes to N4, a value-8 yellow to N8, a value-3 blue to N3. This is why the Reilly palette keeps a full string of grays ready before the painting starts.

If you want to know whether this measured, premixed way of working fits how you actually think, or whether you are built to paint direct and fast instead, the free Artist Reading places you against the painters in our atlas and names the closest three. The workshop that teaches color this way opens this summer. You can join the waitlist.

Name the value first. A color has far fewer places to hide once its value is fixed.
